KT830GC

Page view:
Name

KT830GC

没有此类产品
Features
Parameters
Installation Size
Application Cases
Related Download
• X, Y, Z three-axis control, 0.001mm interpolation accuracy, support linear, arc, ellipse, and parabolic interpolation
• 2 channels of 0~10v analog voltage output, support dual spindle control
• Support sentence-style macro command editing, support macro program call with parameters
• Equipped with a USB interface, which greatly facilitates the copying of processing programs and the import and export of system parameters
• Special IO interface and M code programming design for grinding machine control
• External measuring tool control function
• Emergency stop protection function of the grinder
• Automatic grinding wheel adjustment and compensation function
• Special oblique axis function for grinder (oblique axis angle: 0~45 degrees)
• Open clock function, piece counting function, and the time permission can be set when the equipment leaves the factory
• Electronic gear function. The motor can be directly connected with any pitch screw
• Built-in open PLC, you can adjust the parameters as needed to control the I/O port at will
• Backlash and pitch compensation function to maximize machining accuracy
• Large program capacity: 32M bytes, which can store 480 processing programs.
• 8.4"TFT800x600 dot matrix LCD display, support full Chinese or full English menu display
• Can control all digital AC servo unit and three-phase vector subdivision stepping unit
Corresponding parameter set not found, please add it in property template of background

Features

Description

Specification refers to the standard

Control axis

Number of control axes

3 axis

Number of linkage axes

3 axis

Input command

Minimum setting unit

0.001mm

Smallest moving unit

0.001mm

Maximum command value

±99999.999mm

Feed

Maximum moving speed

60000mm/min

Thread lead

0.001mm~500.000mm

Automatic acceleration
and deceleration

Straight line, front acceleration and deceleration

Interpolation

Positioning,
interpolation function

Straight line, arc, thread cycle, tapping cycle,
drilling cycle, outer circle,
end face compound cycle and other functions

Storage and
editing

Program storage capacity

Electronic disk: 32M bytes

Number of stored programs

480 pcs

Program editing

Insert, modify, delete, copy

Parameter storage

Parameter backup, restore factory value,
parameter U disk import and export

Display

Horizontal

8 inches, TFT true color display

U disk function

Program import
and export

Have

Parameter import
and export

Have

System U Disk Upgrade

Have

Input Output

Input port

46 switches,
photoelectric isolation input

Output port

38 switch output (OC output)

Compensation
function

Compensation
function

Tool compensation, backlash compensation,
screw pitch error compensation

Special features
of grinder

G10

Automatic trimming tool compensation function

G35/G36

Synchronous oscillation grinding function

One-key tool setting function

Parametric programming function

Drive
interface

AC servo or
three-phase hybrid drive

Control method: "direction + pulse"

Spindle

Ordinary spindle

Have

Dual spindle function

Have

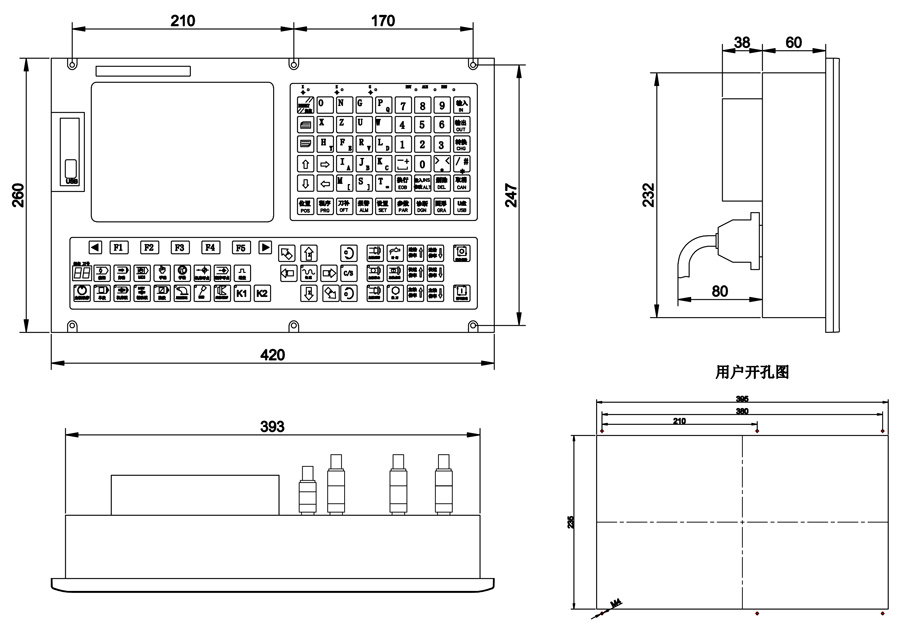

KT830GC main panel installation size drawing
