KT838GC-C Bus Cylindrical Grinder CNC System
>
KT838GC-C

Product Search:

Search

KT838GC-C

Page view:
Name

KT838GC-C

没有此类产品
Features
Parameters
Installation Size
Application Cases
Related Download
• Support Yaskawa M-Ⅱ high-speed bus communication protocol
• Supports 17-bit and 23-bit absolute encoders, with high precision, no zero return, and closed-loop control
• X, Y, Z, 4th, 5th five-axis control, Z, 4th, 5th axis name and axis type can be defined
• 1ms interpolation cycle, control accuracy 0.001 and 0.0001mm optional
• 2 channels of 0~10v analog voltage output, supporting dual spindle control.
• Support sentence-style macro command editing, support macro program call with parameters
• Grinding machine control dedicated IO interface and M code programming design
• External measuring tool control function
• Emergency stop protection function of the grinder
• Automatic grinding wheel adjustment and compensation function
• Special inclined axis function for grinder (angle of inclined axis: 0~45 degrees)
• Equipped with a USB interface, which greatly facilitates the copying of processing programs and the import and export of system parameters
• Open clock function, piece counting function, and the time permission can be set when the equipment leaves the factory
• Electronic gear function. The motor can be directly connected with any pitch screw
• Built-in multiple PLC programs, the currently running PLC program can be selected
• Backlash and pitch compensation function to maximize machining accuracy
• Large program capacity: 64M bytes, 400 processing programs can be stored.
• 8.4"TFT800x600 dot matrix LCD display, support full Chinese or full English menu display
Corresponding parameter set not found, please add it in property template of background

Features

Description

Specification refers to the standard

Control axis

Number of control axes

5-axis

Number of linkage axes

5-axis

PLC control axis

3-axis

Input
command

Minimum setting unit

0.001mm and 0.0001mm optional

Smallest moving unit

0.001mm and 0.0001mm optional

Maximum command value

±99999999*Minimum instruction increment

Feed

Maximum moving speed

60000mm/min

Thread lead

0.001mm～500.000mm

Automatic acceleration and deceleration

Front acceleration/deceleration linear type,
front acceleration/deceleration S type

Thread function

Ordinary thread (following the spindle)/rigid thread
Single-head/multi-head metric and
inch straight thread,taper thread and
end thread,equal pitch and variable pitch thread

Interpolation

Positioning,
interpolation function

Straight line, arc, thread cycle, tapping cycle,
drilling cycle, outer circle,
end face compound cycle and other functions

Storage and
editing

Program storage capacity

Electronic disk: 64M bytes

Number of stored programs

400 pcs

Program editing

Insert, modify, delete, copy

Parameter storage

Parameter backup, restore factory value,
parameter U disk import and export

Display

Horizontal

8 inches, TFT true color display

Vertical section

8 inches, TFT true color display

U disk function

Program import
and export

Have

Parameter import and export

Have

System U Disk Upgrade

Have

input Output

Input port

46 switches, photoelectric isolation input

Output port

38 switch output (OC output)

Compensation
function

Compensation
function

Tool compensation, backlash compensation,
screw pitch error compensation

Special features
of grinder

G10

Automatic trimming tool compensation function

G35/G36

Synchronous oscillation grinding function

One-key tool setting function

Parametric programming function

PLC function

PLC function

Two-level PLC program, up to 8000 steps,
the first level program refreshes 8ms
PLC program transfer via U disk
Support PLC warning and PLC alarm
Support multiple PLC programs (up to 20),
the currently running PLC program can be selected

Drive
interface

PLC function

Control method: bus control

Spindle

Servo spindle

Have

Dual spindle function

Have

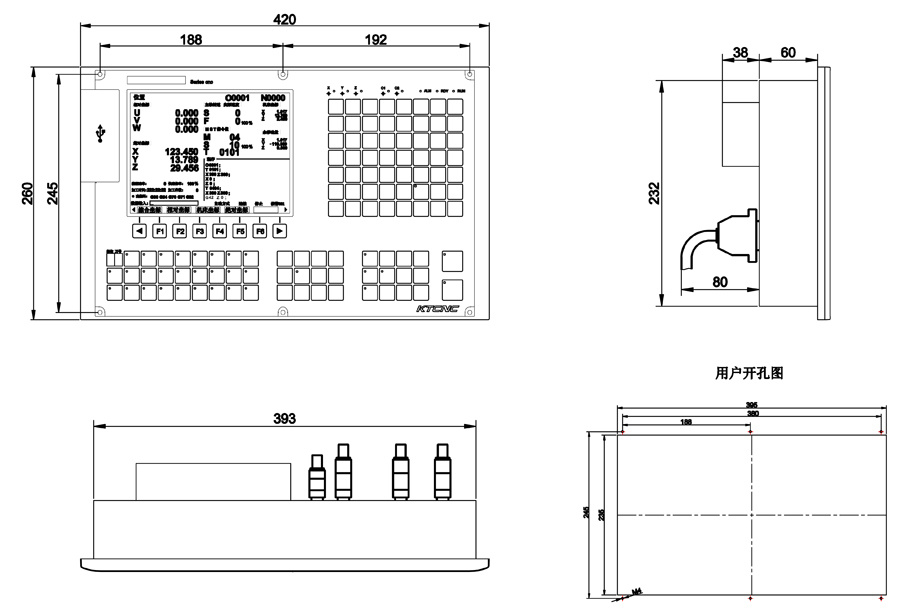

KT838GC-C main panel installation dimension drawing

88

Software download ： KT838GC-C_ External grinding software (GC413389) Download
Manual download ： Bus_Grinder Instructions_V2.5 Download Preview
Debugging instructions download ： Bus_Grinding machine debugging process description_V1.0 Download Preview
