KT210TA

Page view:
Name

KT210TA

没有此类产品
Features
Parameters
Installation Size
Application Cases
Related Download
• X, Z two-axis control, 0.001mm interpolation accuracy
• 0~10v analog voltage output, which can directly control the frequency of quenching
• Equipped with a USB interface, which greatly facilitates the copying of processing programs and the import and export of system parameters
• Open clock function, piece counting function, and the time permission can be set when the equipment leaves the factory
• Electronic gear function. The motor can be directly connected with any pitch screw
• Built-in open PLC, you can adjust the parameters as needed to control the I/O port at will
• Input all external controls for convenient remote operation
• Special keys for hardening machine, special codes
• Backlash and pitch compensation function to maximize machining accuracy
• Large program capacity: 2M bytes, which can store 480 processing programs.
• TFT480x234 dot matrix LCD display, support full Chinese or full English menu display
• Can control all digital AC servo unit and three-phase vector subdivision stepping unit
Corresponding parameter set not found, please add it in property template of background

Features

Description

Specification refers to the standard

Control axis

Number of control axes

2 axis

Number of linkage axes

2 axis

Input command

Minimum setting unit

0.001mm

Smallest moving unit

0.001mm

Maximum command value

±99999.999mm

Feed

Maximum moving speed

60000mm/min

Thread lead

0.001mm~500.000mm

Automatic acceleration and deceleration

Straight line, front acceleration and deceleration

Storage and editing

Program storage capacity

2M bytes

Number of stored programs

480 pcs

Program editing

Insert, modify, delete, copy

Parameter storage

Parameter backup, restore factory value,
parameter U disk import and export

Quenching
special function

Panel keys

Power button, multiple power switch use

Liquid spray button, multiple buttons superimposed to use

Load switch button, heating button, top button

External expansion button

All special buttons have external expansion buttons

M code

All special functions have corresponding code control

Custom alarm

Customized alarms such as water
shortage alarm and power failure alarm

Display

Horizontal

7 inches, TFT true color display

U disk function

Program import and export

Have

Parameter import and export

Have

System U Disk Upgrade

Have

Input Output

Input port

32-way switch, photoelectric isolation input

Output port

32-channel switch output (OC output)

Compensation
function

Compensation function

Tool compensation, backlash compensation,
screw pitch error compensation

Drive interface

AC servo or three-phase hybrid drive

Control method: "direction + pulse"

Spindle

Ordinary spindle

Have

Dual spindle function

No

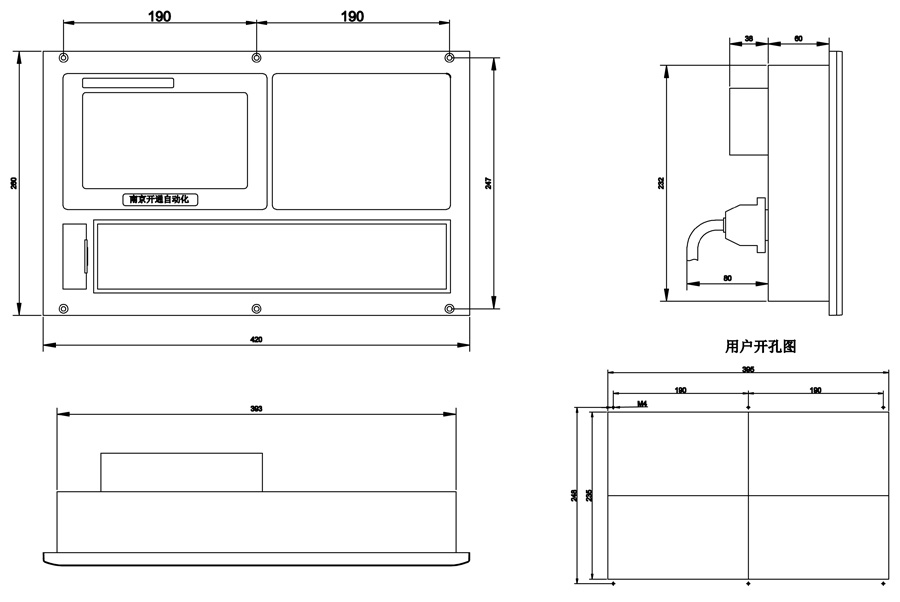

KT210TA main panel installation size drawing
