• X, Y, Z three-axis control, 0.001mm interpolation accuracy, support linear, arc, ellipse, and parabolic interpolation
• 2 channels 0~10v analog voltage output, support dual spindle control
• Support sentence-style macro command editing, support macro program call with parameters
• Equipped with a USB interface, which greatly facilitates the copying of processing programs and the import and export of system parameters
• It has multiple compound cycle functions such as tapping, deep hole drilling, grooving, inner and outer cylindrical surface, end surface cycle processing, etc.
• It has various special functions such as chamfering function, automatic repeat feeding, condition waiting, etc.
• Open clock function, piece counting function, and the time permission can be set when the equipment leaves the factory
• Electronic gear function. The motor can be directly connected with any pitch screw
• Built-in open PLC, you can adjust the parameters as needed to control the I/O port at will
• Backlash and pitch compensation function to maximize machining accuracy
• Large program capacity: 32M bytes, which can store 480 processing programs.
• 8.4"TFT800x600 dot matrix liquid crystal display, support full Chinese or full English menu display
• Can control all digital AC servo unit and three-phase vector subdivision stepping unit

Features

Description

Specifications

Control axis

Number of control axes

3 axis

Number of linkage axes

3 axis

Input command

Minimum setting unit

X：0.001mm Y：0.001mm Z：0.001mm

Smallest moving unit

0.001mm

Maximum command value

±99999.999mm

Feed

Maximum moving speed

60000mm/min

Thread lead

0.001mm～500.000mm

Automatic acceleration and deceleration

Straight line, front acceleration and deceleration

Interpolation

Positioning, interpolation function

Functions such as straight line, arc,
tapping cycle, drilling cycle, etc.

Storage and
editing

Program storage capacity

Electronic disk: 32M bytes

Number of stored programs

480 pcs

Program editing

Insert, modify, delete, copy

Parameter storage

Parameter backup, restore factory value,
parameter U disk import and export

Display

Horizontal

8 inches, TFT true color display

Vertical section

8 inches, TFT true color display

U disk function

Program import and export

Have

Parameter import and export

Have

System U Disk Upgrade

Have

M, S, T function

Input port

46 switches, photoelectric isolation input

Output port

38 switch output (OC output)

Compensation
function

Compensation function

Tool compensation, backlash compensation,
screw pitch error compensation

Canned cycle
function

G76

Fine boring cycle

G86

Boring cycle

G87

Back boring cycle

G88

Boring, manual retract

G74

Deep hole drilling cycle

G33

Rigid tapping cycle

Drive interface

Servo or step

Control method: "direction + pulse"

Spindle

Servo spindle/normal spindle

Have

Dual spindle function

Have

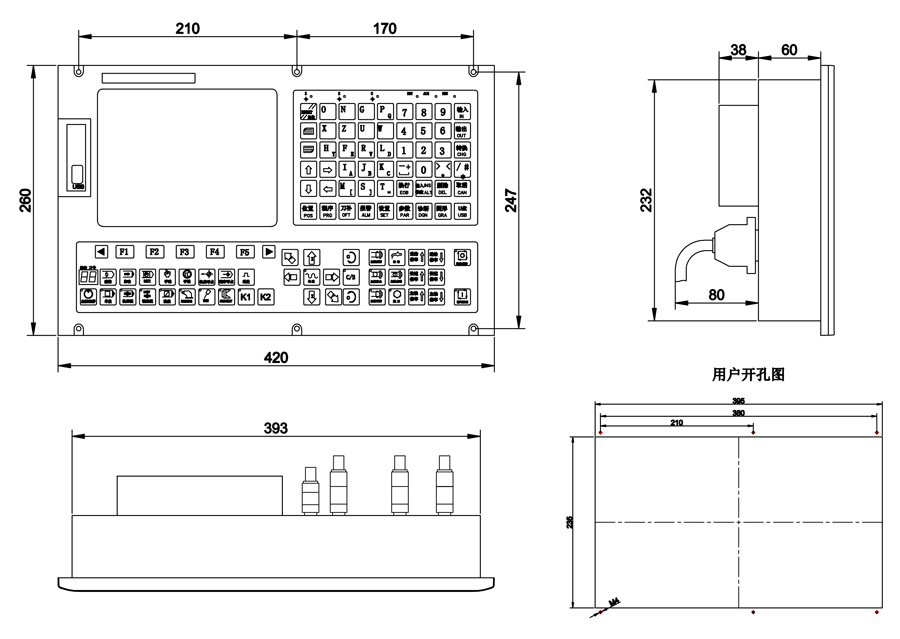

KT830MI main panel installation size drawing
