• X, Z two-axis control, 0.001mm interpolation accuracy, support linear, arc, ellipse, and parabolic interpolation
• Equipped with a USB interface, which greatly facilitates the copying of processing programs and the import and export of system parameters
• Various threads can be turned, thread run-out length, thread cutting angle can be set
• It has multiple compound cycle functions such as tapping, deep hole drilling, grooving, inner and outer cylindrical surface, end surface cycle processing, etc.
• It has various special functions such as chamfering function, automatic repeat feeding, condition waiting, etc.
• Open clock function, piece counting function, and the time permission can be set when the equipment leaves the factory
• Electronic gear function. The motor can be directly connected with any pitch screw
• Built-in open PLC, you can adjust the parameters as needed to control the I/O port at will
• Backlash and pitch compensation function to maximize machining accuracy
• Large program capacity: 32M bytes, which can store 480 processing programs.
• 8.4"TFT800x600 dot matrix liquid crystal display, support full Chinese or full English menu display
• Can control all digital AC servo unit and three-phase vector subdivision stepping unit

Features

Description

Specification refers to the standard

Control axis

Number of control axes

2 axis

Number of linkage axes

2 axis

Input
command

Minimum setting unit

0.001mm

Smallest moving unit

0.001mm

Maximum command value

±99999.999mm

Feed

Maximum moving speed

60000mm/min

Thread lead

0.001mm～500.000mm

Automatic acceleration
and deceleration

Straight line, front acceleration and deceleration

Interpolation

Positioning,
interpolation function

Straight line, arc, thread cycle, tapping cycle, drilling cycle,
outer circle, end face compound cycle and other functions

Storage and
editing

Program storage capacity

Electronic disk: 32M bytes

Number of stored programs

480 pcs

Program editing

Insert, modify, delete, copy

Parameter storage

Parameter backup, restore factory value,
parameter U disk import and export

Display

Horizontal

8 inches, TFT true color display

U disk function

Program import and export

Have

Parameter import
and export

Have

System U Disk Upgrade

Have

Input
Output

Input port

32-way switch, photoelectric isolation input

Output port

32-channel switch output (OC output)

Compensation
function

Compensation function

Tool compensation, backlash compensation,
screw pitch error compensation

Canned cycle
function

G94

Face turning cycle

G93

External turning cycle

G92

Thread cycle (straight and tapered threads, metric,
inch, single-thread, multi-thread, arbitrary thread cutting angle)

G70,G71,G72,G73

Compound loop

G74

End face drilling cycle

G75

Grooving or cutting cycle

G33

Rigid tapping cycle

Drive
interface

AC servo or
three-phase hybrid drive

Rigid tapping cycle

Spindle

Ordinary spindle

Have

Dual spindle function

No

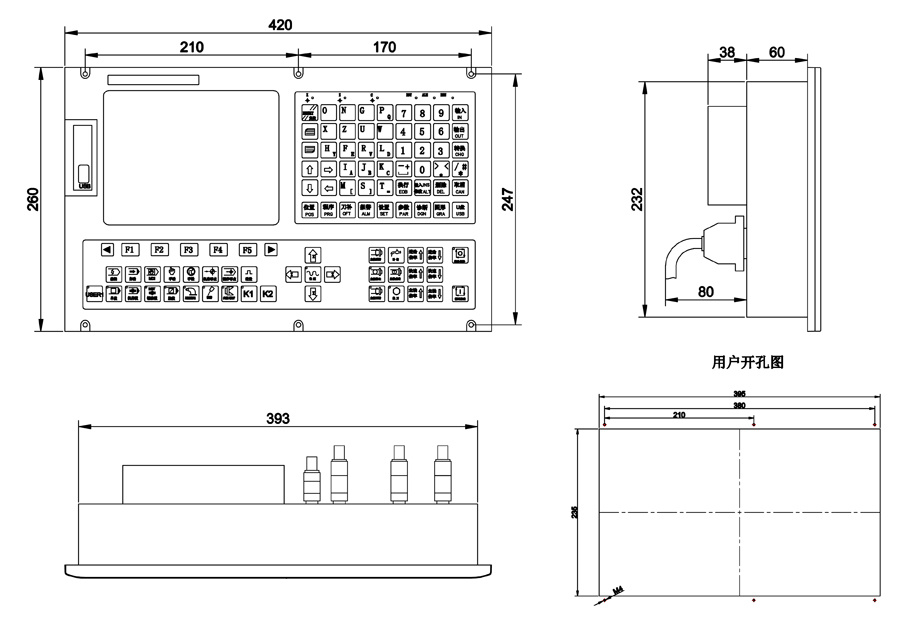

KT821TI main panel installation size drawing
